Wifi 6 Huawei AP263 (256 user)
Price:
Contact
- Model : AP263 (256 user)
- P/N : AP263 (256 user)
- Origin : Huawei/China
Call for a price
- Technical support: 0939.147.993
Purchase benefits

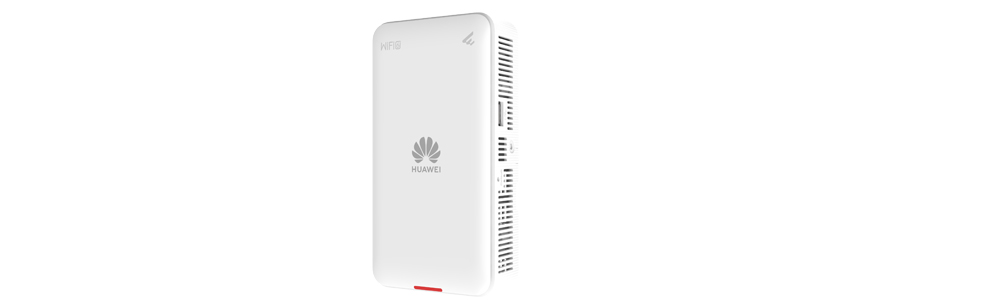

The Huawei AP263 is a premium wall-mounted Wi-Fi 6 access point, designed for environments such as hotels, offices, schools, and modern apartments. Supporting the Wi-Fi 6 (802.11ax) standard on both 2.4 GHz and 5 GHz bands, the AP263 delivers ultra-fast speeds of up to 2.975 Gbps, ensuring smooth, stable, and high-performance connectivity even with multiple devices connected simultaneously.
The device supports up to 256 concurrent users (recommended 64 users), making it ideal for high-density scenarios. Equipped with 2 GE (RJ45) auto-sensing 10/100/1000M ports and supporting PoE 802.3af/at, the AP263 offers flexible deployment and reduced installation costs.
With its compact wall-mounted design (86 mm/1-Gang 120 mm standard), the AP263 saves installation space while maintaining aesthetics. Integrated with smart antennas and 2×2 MIMO technology, it enhances coverage, minimizes interference, and optimizes network performance.
The Huawei AP263 is the perfect Wi-Fi 6 solution for modern spaces, delivering powerful, secure, and reliable connectivity for professional and premium environments.
Specifications Wifi 6 Huawei AP263 (256 user)
Wi-Fi Standard: 2.4 GHz: 802.11b/g/n/ax, 5 GHz: 802.11a/n/ac/ax, Dual-band 2/ax

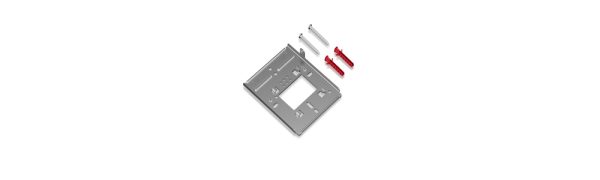

Installation Type: Desk, Wall, Ceiling (Gypsum board), Junction box (86 mm / 1-Gang 120 mm / Octagonal)
Optimal Signal Range (m): 13
Maximum Number of Concurrent Users: 256
Recommended Number of Concurrent Users: 64
Device Rate: 2.975 Gbps
Maximum Number of Physical Ports: GE (RJ45) x 2, auto-sensing 10M/100M/1000M
Number of Radios: 2
Maximum Channel Bandwidth [MHz]: Radio 0 (2.4 GHz): 40 MHz, Radio 1 (5 GHz): 160 MHz
Maximum Transmit Power: 2.4G: 20 dBm/chain, 23 dBm (combined power); 5G: 20 dBm/chain, 23 dBm (combined power); BLE: < 10 dBm
MIMO Spatial Streams: Radio 0 (2.4 GHz): 2×2, Radio 1 (5 GHz): 2×2
Maximum Power Consumption [W]: 12
Input Voltage Range [V]: 12±10%, PoE: 802.3at/af
Dimensions without Packaging (H × W × D) [mm (in.)]: 160 mm × 86 mm × 38 mm (6.30 in. × 3.39 in. × 1.50 in.)
Dimensions with Packaging (H × W × D) [mm (in.)]: 75 mm × 205 mm × 115 mm (2.95 in. × 8.07 in. × 4.53 in.)
Weight without Packaging [kg (lb)]: 0.320 kg (0.705 lb)
Weight with Packaging [kg (lb)]: 0.542 kg (1.195 lb)
Long-Term Operating Temperature [°C (°F)]: 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum operating temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-Term Operating Relative Humidity [RH]: 5% RH to 95% RH, non-condensing
Radio Interface: Built-in smart antenna
Antenna Gain: 2.4G: 2 dBi/chain (peak value), 1 dBi (combined gain); 5G: 3 dBi/chain (peak value), 1 dBi (combined gain); BLE: 4 dBi
Operating Frequency Range: 2.4 GHz, 5 GHz
Installation Type: Desk, Wall, Ceiling (Gypsum board), Junction box (86 mm / 1-Gang 120 mm / Octagonal)
Optimal Signal Range (m): 13
Maximum Number of Concurrent Users: 256
Recommended Number of Concurrent Users: 64
Device Rate: 2.975 Gbps
Maximum Number of Physical Ports: GE (RJ45) x 2, auto-sensing 10M/100M/1000M
Number of Radios: 2
Maximum Channel Bandwidth [MHz]: Radio 0 (2.4 GHz): 40 MHz, Radio 1 (5 GHz): 160 MHz
Maximum Transmit Power: 2.4G: 20 dBm/chain, 23 dBm (combined power); 5G: 20 dBm/chain, 23 dBm (combined power); BLE: < 10 dBm
MIMO Spatial Streams: Radio 0 (2.4 GHz): 2×2, Radio 1 (5 GHz): 2×2
Maximum Power Consumption [W]: 12
Input Voltage Range [V]: 12±10%, PoE: 802.3at/af
Dimensions without Packaging (H × W × D) [mm (in.)]: 160 mm × 86 mm × 38 mm (6.30 in. × 3.39 in. × 1.50 in.)
Dimensions with Packaging (H × W × D) [mm (in.)]: 75 mm × 205 mm × 115 mm (2.95 in. × 8.07 in. × 4.53 in.)
Weight without Packaging [kg (lb)]: 0.320 kg (0.705 lb)
Weight with Packaging [kg (lb)]: 0.542 kg (1.195 lb)
Long-Term Operating Temperature [°C (°F)]: 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum operating temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-Term Operating Relative Humidity [RH]: 5% RH to 95% RH, non-condensing
Radio Interface: Built-in smart antenna
Antenna Gain: 2.4G: 2 dBi/chain (peak value), 1 dBi (combined gain); 5G: 3 dBi/chain (peak value), 1 dBi (combined gain); BLE: 4 dBi
Operating Frequency Range: 2.4 GHz, 5 GHz
