Wifi 6 Huawei AP761 (1024 user)

Price: Contact

Model : AP761 (1024 user)
P/N : AP761 (1024 user)
Origin : Huawei/China

Add to cart Buy now

Request a quote

Call for a price

Technical support: 0939.147.993

Purchase benefits

✔️100% genuine product

✔️Best price

✔️Dedicated professional advice

✔️Free delivery within Hanoi, Ho Chi Minh, Bac Ninh

✔️Warranty & dedicated repair

VUNG PHAT COMMERCE & TECHNICAL COMPANY LIMITED

Address: C9-18 Geleximco Le Trong Tan Urban Area, Duong Noi Ward, Hanoi City, Viet Nam
Hotline: 0939 147 993 - 0911 664 995
Email: info@vptek.vn
Website: www.vptek.vn

Details
Manual document

The Huawei AP761 is a high-performance outdoor Wi-Fi 6 access point, designed to deliver powerful, stable, and secure connectivity in challenging environments such as campuses, industrial parks, stadiums, public squares, and parking lots. Supporting the Wi-Fi 6 (802.11ax) dual-band 2.4 GHz and 5 GHz standard, the AP761 provides data rates of up to 1.775 Gbps and serves up to 1024 concurrent users (recommended 120), ensuring smooth and seamless network performance even in high-density areas.

Equipped with an integrated directional antenna, robust transmission power, and IP68-rated dustproof and waterproof protection, the AP761 withstands harsh environments with operating temperatures ranging from –40°C to +65°C. In addition, it supports PoE 802.3at/af power supply, enabling flexible deployment and cost savings.

With its durable design, outstanding performance, and flexible scalability, the Huawei AP761 is the ideal outdoor Wi-Fi 6 solution for enterprises, organizations, and service providers requiring high-speed, stable, and secure wireless connectivity for a large number of users.

Specifications Wifi 6 Huawei AP761 (1024 user)

Wi-Fi Standard: 2.4 GHz: 802.11b/g/n/ax; 5 GHz: 802.11a/n/ac/ac Wave 2/ax

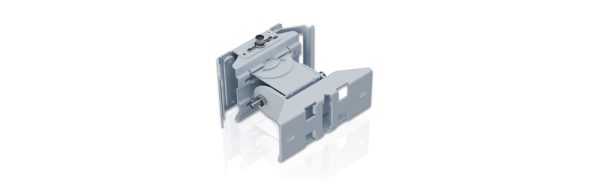

Installation Type: Wall, Pole
Maximum Signal Range (m): 500
Maximum Concurrent Users: 1024
Recommended Concurrent Users: 120
Data Rate: 1.775 Gbps

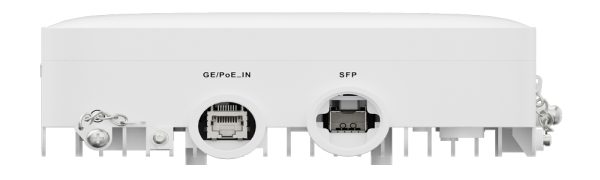

Maximum Number of Physical Ports on the Device: GE (RJ45) x 1, Auto-sensing GE optical port 10M/100M/1000M (SFP)
Number of Radios: 2
Maximum Channel Bandwidth [MHz]: Radio 0 (2.4 GHz): 40 MHz; Radio 1 (5 GHz): 80 MHz
Maximum Transmit Power: 2.4G: 28 dBm (Max); 5G: 27 dBm (Max)
Note: This is the total MIMO transmit power, e.g., 2.4G: 25 dBm/chain (Max), 5G: 24 dBm/chain (Max), BLE: < 10 dBm
MIMO Spatial Streams: Radio 0 (2.4 GHz): 2×2; Radio 1 (5 GHz): 2×2
Maximum Power Consumption [W]: 17.7
Input Voltage Range [V]: PoE: 802.3at/af
Dimensions without Packaging (H × W × D) [mm (in.)]: 69 × 200 × 200 (2.72 × 7.87 × 7.87)
Dimensions with Packaging (H × W × D) [mm (in.)]: 160 × 470 × 390 (6.30 × 18.50 × 15.35)
Weight without Packaging [kg (lb)]: 1.91 (4.21)
Weight with Packaging [kg (lb)]: 3.73 (8.22)
Operating Temperature (Long-term) [°C (°F)]: –40°C to +65°C (–40°F to +149°F)
(From 1800 m to 5000 m [5905.51 ft to 16404.20 ft], the maximum operating temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft] increase in altitude)
Operating Relative Humidity (Long-term) [RH]: 0% to 100%
Radio Interface: Built-in directional antenna
Antenna Gain: 2.4G: 10 dBi; 5G: 11 dBi; BLE: 5 dBi
Operating Frequency Bands: 2.4 GHz, 5 GHz
Service Port Surge Protection: 6 kA (common mode)
Ingress Protection (Dust/Water): IP68
