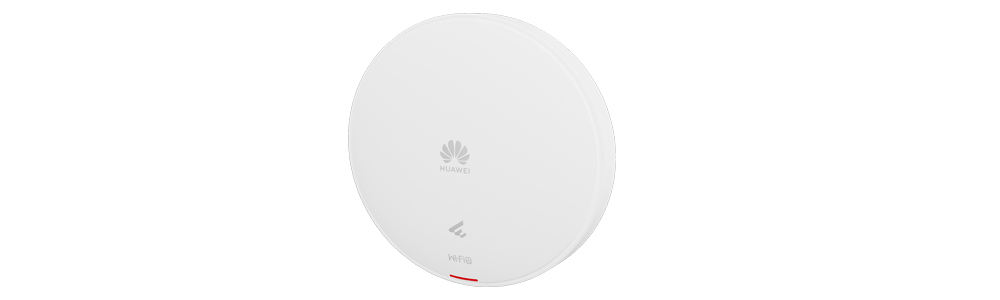

Wifi 7 Huawei AP673E (1024 user)
Price:
Contact
- Model : AP673E (1024 user)
- P/N : AP673E (1024 user)
- Origin : Huawei/China
Call for a price
- Technical support: 0939.147.993
Purchase benefits
The Huawei AP673E is a high-performance Wi-Fi 7 (802.11be) access point, designed for environments requiring high bandwidth and user density such as enterprises, shopping malls, schools, and public spaces. Featuring three radios operating simultaneously on the 2.4 GHz and 5 GHz bands, the AP673E delivers an aggregate data rate of up to 7.89 Gbps, ensuring fast, stable, and low-latency connectivity.
Supporting up to 1024 concurrent users (recommended 180), the AP673E integrates smart antennas, advanced MIMO technology (2×2 and 4×4), and optimized signal adjustment to provide wide coverage, reduced interference, and an enhanced network experience.

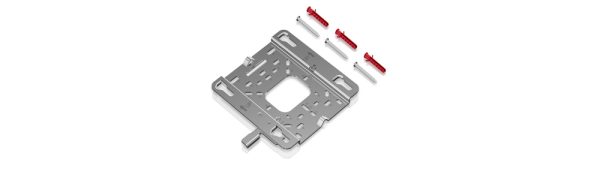

With a flexible design for wall, ceiling, or junction box installation, and PoE support (802.3bt/at/af), the AP673E enables easy, cost-effective deployment while maintaining aesthetic appeal. This next-generation Wi-Fi solution is ideal for organizations looking to build high-speed, reliable, and future-ready wireless networks.
Specifications Wifi 7 Huawei AP673E (1024 user)
Wi-Fi Standard: 2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ax/be
Installation Type: Wall, Ceiling (Solid wall/Drywall/Flat-edge T-bar/Channel rail/Beam/Threaded rod), Junction box (86 mm/1-gang 120 mm/Octagon/2-gang 120 mm)
Optimal Signal Range (m): 40
Maximum Concurrent Users: 1024
Recommended Concurrent Users: 180
Device Throughput: 7.89 Gbps
Maximum Physical Ports on Device: 5GE (RJ45) × 1, auto-sensing 100M/1000M/2500M/5000M; GE (RJ45) × 1, auto-sensing 10M/100M/1000M
Number of Radios: 3
Maximum Channel Bandwidth [MHz]: Radio 0 (2.4 GHz): 40 MHz; Radio 1 (5 GHz-H): 80 MHz; Radio 2 (5 GHz-L): 160 MHz
Maximum Transmit Power: 2.4 GHz: 20 dBm/chain, 23 dBm (combined power); 5 GHz (2×2): 20 dBm/chain, 23 dBm (combined power); 5 GHz (4×4): 20 dBm/chain, 26 dBm (combined power)
MIMO Spatial Streams: Radio 0 (2.4 GHz): 2×2; Radio 1 (5 GHz-H): 2×2 (high band: 5490–5850 MHz); Radio 2 (5 GHz-L): 4×4 (low band: 5150–5330 MHz)
Maximum Power Consumption [W]: 22.3 (excluding USB and PoE output)
Input Voltage Range [V]: DC: 43.2 V to 57.6 V; PoE: 802.3bt/at/af
Dimensions without Packaging (D × H) [mm(in.)]: 220 mm × 45 mm (8.66 in. × 1.77 in.)
Dimensions with Packaging (H × W × D) [mm(in.)]: 72 mm × 260 mm × 255 mm (2.83 in. × 10.24 in. × 10.04 in.)
Weight without Packaging [kg(lb)]: 0.740 kg (1.63 lb)
Weight with Packaging [kg(lb)]: 1.225 kg (2.7 lb)
Operating Temperature [°C(°F)]: –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft to 16404.20 ft], the device’s maximum operating temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft] altitude increase.)
Operating Relative Humidity [RH]: 5% RH to 95% RH, non-condensing
Radio Interface: Built-in smart antennas
Antenna Gain: 2.4 GHz: 4 dBi/chain (peak), 2 dBi (combined); 5 GHz-1: 5 dBi/chain (peak), 3 dBi (combined); 5 GHz-2: 5 dBi/chain (peak), 3 dBi (combined)
Operating Frequency Bands: 2.4 GHz, 5 GHz
Installation Type: Wall, Ceiling (Solid wall/Drywall/Flat-edge T-bar/Channel rail/Beam/Threaded rod), Junction box (86 mm/1-gang 120 mm/Octagon/2-gang 120 mm)
Optimal Signal Range (m): 40
Maximum Concurrent Users: 1024
Recommended Concurrent Users: 180
Device Throughput: 7.89 Gbps
Maximum Physical Ports on Device: 5GE (RJ45) × 1, auto-sensing 100M/1000M/2500M/5000M; GE (RJ45) × 1, auto-sensing 10M/100M/1000M
Number of Radios: 3
Maximum Channel Bandwidth [MHz]: Radio 0 (2.4 GHz): 40 MHz; Radio 1 (5 GHz-H): 80 MHz; Radio 2 (5 GHz-L): 160 MHz
Maximum Transmit Power: 2.4 GHz: 20 dBm/chain, 23 dBm (combined power); 5 GHz (2×2): 20 dBm/chain, 23 dBm (combined power); 5 GHz (4×4): 20 dBm/chain, 26 dBm (combined power)
MIMO Spatial Streams: Radio 0 (2.4 GHz): 2×2; Radio 1 (5 GHz-H): 2×2 (high band: 5490–5850 MHz); Radio 2 (5 GHz-L): 4×4 (low band: 5150–5330 MHz)
Maximum Power Consumption [W]: 22.3 (excluding USB and PoE output)
Input Voltage Range [V]: DC: 43.2 V to 57.6 V; PoE: 802.3bt/at/af
Dimensions without Packaging (D × H) [mm(in.)]: 220 mm × 45 mm (8.66 in. × 1.77 in.)
Dimensions with Packaging (H × W × D) [mm(in.)]: 72 mm × 260 mm × 255 mm (2.83 in. × 10.24 in. × 10.04 in.)
Weight without Packaging [kg(lb)]: 0.740 kg (1.63 lb)
Weight with Packaging [kg(lb)]: 1.225 kg (2.7 lb)
Operating Temperature [°C(°F)]: –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft to 16404.20 ft], the device’s maximum operating temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft] altitude increase.)
Operating Relative Humidity [RH]: 5% RH to 95% RH, non-condensing
Radio Interface: Built-in smart antennas
Antenna Gain: 2.4 GHz: 4 dBi/chain (peak), 2 dBi (combined); 5 GHz-1: 5 dBi/chain (peak), 3 dBi (combined); 5 GHz-2: 5 dBi/chain (peak), 3 dBi (combined)
Operating Frequency Bands: 2.4 GHz, 5 GHz
