Wifi 7 Huawei AP673 (1024 user)
Price:
Contact
- Model : AP673 (1024 user)
- P/N : AP673 (1024 user)
- Origin : Huawei/China
Call for a price
- Technical support: 0939.147.993
Purchase benefits

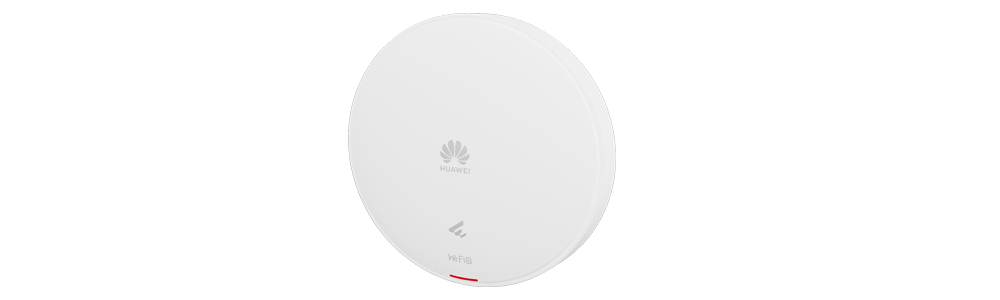

The Huawei AP673 is a high-end Wi-Fi 7 access point designed for high-density environments such as large enterprises, schools, hospitals, shopping centers, and auditoriums. Supporting the latest Wi-Fi 7 (802.11be) standard with dual-band operation at 2.4 GHz and 5 GHz, it delivers blazing-fast data rates of up to 13.66 Gbps, ensuring powerful, smooth, and reliable connectivity for bandwidth-intensive applications.
With support for up to 1,024 concurrent users (recommended 300), along with modern design and PoE 802.3at/af compatibility, the AP673 enables flexible deployment, cost savings, and optimized network infrastructure.
Equipped with MIMO 2×2 (2.4 GHz & 5 GHz) and 4×4 (6 GHz) technology combined with integrated smart antennas, this access point provides wide coverage, reduced interference, and enhanced user experience. It is an ideal solution for building high-speed, secure, and future-proof Wi-Fi networks for organizations and enterprises.
Specifications Wifi 7 Huawei AP673 (1024 user)
Wi-Fi Standard: 2.4 GHz: 802.11b/g/n/ax/be, 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be, 6 GHz: 802.11a/ax/be

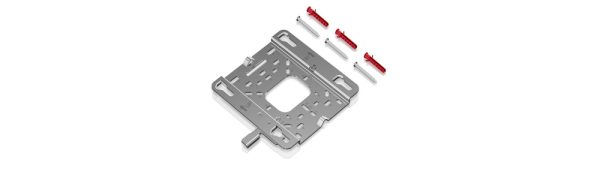

Installation Type: Wall, Ceiling (Solid wall/Drywall/Flat-edge T-bar/Channel rail/Beam/Threaded rod), Junction box (86 mm/1-gang 120 mm/Octagon/2-gang 120 mm)
Optimal Signal Range (m): 40
Maximum Concurrent Users: 1024
Recommended Concurrent Users: 300
Device Rate: 13.66 Gbps

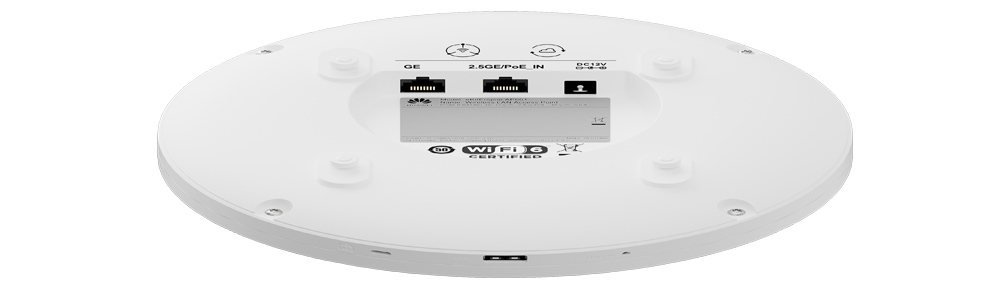

Maximum Physical Ports on the Device: 5GE (RJ45) x 1, auto-sensing 100M/1000M/2500M/5000M; GE (RJ45) x 1, auto-sensing 10M/100M/1000M
Number of Radios: 3
Maximum Channel Bandwidth [MHz]: Radio 0 (2.4 GHz): 40 MHz; Radio 1 (5 GHz): 80 MHz; Radio 2 (6 GHz): 320 MHz
Maximum Transmit Power: 2.4 GHz: 20 dBm/chain, 23 dBm (combined power); 5 GHz (2×2): 20 dBm/chain, 23 dBm (combined power); 6 GHz (4×4): 20 dBm/chain, 26 dBm (combined power)
MIMO Spatial Streams: Radio 0 (2.4 GHz): 2×2; Radio 1 (5 GHz): 2×2; Radio 2 (6 GHz): 4×4
Maximum Power Consumption [W]: 21.1 W (excluding USB)
Input Voltage Range [V]: DC: 12 V ± 10%; PoE: 802.3at/af
Dimensions (W × D × H) [mm(in.)] without packaging: Diameter × depth: 220 mm × 45 mm (8.66 in. × 1.77 in.)
Dimensions (W × D × H) [mm(in.)] with packaging: 72 mm × 260 mm × 255 mm (2.83 in. × 10.24 in. × 10.04 in.)
Weight [kg(lb)] without packaging: 0.745 kg (1.64 lb)
Weight [kg(lb)] with packaging: 1.230 kg (2.71 lb)
Operating Temperature (long-term) [°C(°F)]: –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the device’s maximum operating temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] altitude increase.)
Operating Relative Humidity (long-term) [RH]: 5% to 95% RH (non-condensing)
Radio Interface: Built-in smart antenna
Antenna Gain: 2.4 GHz: 4 dBi/chain (peak gain), 2 dBi (combined gain); 5 GHz: 5 dBi/chain (peak gain), 3 dBi (combined gain); 6 GHz: 5 dBi/chain (peak gain), 3 dBi (combined gain)
Operating Frequency Band: 2.4 GHz, 5 GHz, 6 GHz
Installation Type: Wall, Ceiling (Solid wall/Drywall/Flat-edge T-bar/Channel rail/Beam/Threaded rod), Junction box (86 mm/1-gang 120 mm/Octagon/2-gang 120 mm)
Optimal Signal Range (m): 40
Maximum Concurrent Users: 1024
Recommended Concurrent Users: 300
Device Rate: 13.66 Gbps
Maximum Physical Ports on the Device: 5GE (RJ45) x 1, auto-sensing 100M/1000M/2500M/5000M; GE (RJ45) x 1, auto-sensing 10M/100M/1000M
Number of Radios: 3
Maximum Channel Bandwidth [MHz]: Radio 0 (2.4 GHz): 40 MHz; Radio 1 (5 GHz): 80 MHz; Radio 2 (6 GHz): 320 MHz
Maximum Transmit Power: 2.4 GHz: 20 dBm/chain, 23 dBm (combined power); 5 GHz (2×2): 20 dBm/chain, 23 dBm (combined power); 6 GHz (4×4): 20 dBm/chain, 26 dBm (combined power)
MIMO Spatial Streams: Radio 0 (2.4 GHz): 2×2; Radio 1 (5 GHz): 2×2; Radio 2 (6 GHz): 4×4
Maximum Power Consumption [W]: 21.1 W (excluding USB)
Input Voltage Range [V]: DC: 12 V ± 10%; PoE: 802.3at/af
Dimensions (W × D × H) [mm(in.)] without packaging: Diameter × depth: 220 mm × 45 mm (8.66 in. × 1.77 in.)
Dimensions (W × D × H) [mm(in.)] with packaging: 72 mm × 260 mm × 255 mm (2.83 in. × 10.24 in. × 10.04 in.)
Weight [kg(lb)] without packaging: 0.745 kg (1.64 lb)
Weight [kg(lb)] with packaging: 1.230 kg (2.71 lb)
Operating Temperature (long-term) [°C(°F)]: –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the device’s maximum operating temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] altitude increase.)
Operating Relative Humidity (long-term) [RH]: 5% to 95% RH (non-condensing)
Radio Interface: Built-in smart antenna
Antenna Gain: 2.4 GHz: 4 dBi/chain (peak gain), 2 dBi (combined gain); 5 GHz: 5 dBi/chain (peak gain), 3 dBi (combined gain); 6 GHz: 5 dBi/chain (peak gain), 3 dBi (combined gain)
Operating Frequency Band: 2.4 GHz, 5 GHz, 6 GHz
