https://vptek.vn/Wifi 7 Huawei AP772E (1024 user)

Wifi 7 Huawei AP772E (1024 user)

Price: Contact

Model : AP772E (1024 user)
P/N : AP772E (1024 user)
Origin : Huawei/China

Add to cart Buy now

Request a quote

Call for a price

Technical support: 0939.147.993

Purchase benefits

✔️100% genuine product

✔️Best price

✔️Dedicated professional advice

✔️Free delivery within Hanoi, Ho Chi Minh, Bac Ninh

✔️Warranty & dedicated repair

VUNG PHAT COMMERCE & TECHNICAL COMPANY LIMITED

Address: C9-18 Geleximco Le Trong Tan Urban Area, Duong Noi Ward, Hanoi City, Viet Nam
Hotline: 0939 147 993 - 0911 664 995
Email: info@vptek.vn
Website: www.vptek.vn

Details
Manual document

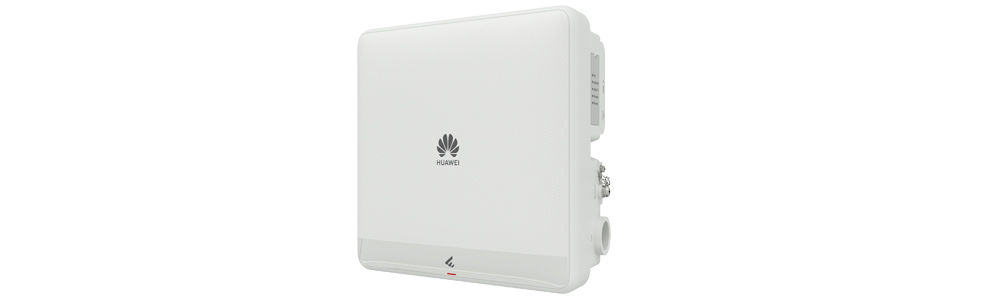

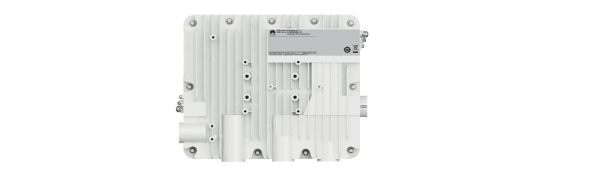

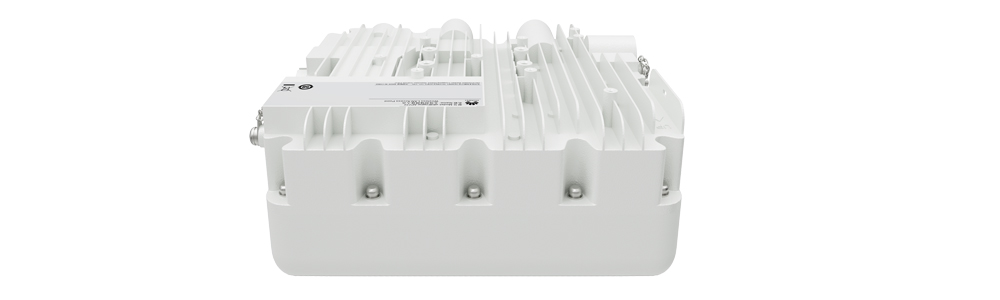

Huawei AP772E is a high-performance outdoor Wi-Fi 7 access point designed for large-scale deployments, supporting up to 1024 concurrent users. With dual-band 2.4 GHz and 5 GHz Wi-Fi 7 (802.11be) technology, it delivers ultra-fast wireless speeds of up to 6.45 Gbps, ensuring seamless connectivity for demanding applications such as HD video streaming, online gaming, and massive IoT device integration.

The AP772E features 2.5GE and 10GE uplinks, as well as four flexible downlink ports, enabling high-capacity wired and wireless data transmission. Its smart directional antennas and 2×2 / 4×4 MIMO design provide extended coverage, minimized interference, and stable connections across large outdoor areas. Built for harsh environments, the AP772E supports IP68-rated ingress protection, wide operating temperature ranges, and robust PoE (802.3bt/at/af) power options.

Ideal for stadiums, campuses, urban areas, and other outdoor scenarios, the AP772E combines high performance, reliability, and ease of deployment, delivering a seamless, high-speed Wi-Fi experience to large numbers of users.

Specifications Wifi 7 Huawei AP772E (1024 user)

Wi-Fi Standard: 2.4 GHz: 802.11b/g/n/ax/be; 5 GHz: 802.11a/n/ac/ax/be
Installation Type: Wall, Pole
Optimal Signal Range (m): 250
Maximum Number of Concurrent Users: 1024
Recommended Number of Concurrent Users: 130
Device Rate: 6.45 Gbps
Maximum Number of Physical Ports: 2.5GE (RJ45) × 1, auto-sensing 100M/1000M/2500M; 10GE optical (SFP+), auto-sensing GE/2.5GE/10GE
Number of Radios: 2
Maximum Channel Bandwidth [MHz]: Radio 0 (2.4 GHz): 40 MHz; Radio 1 (5 GHz): 160 MHz
Maximum Transmit Power: 2.4 GHz: 25 dBm/stream, 28 dBm (combined); 5 GHz: 24 dBm/stream, 30 dBm (combined)
MIMO Spatial Streams: Radio 0 (2.4 GHz): 2×2; Radio 1 (5 GHz): 4×4
Maximum Power Consumption [W]: 20.4 (excluding USB)
Input Voltage Range [V]: DC: 43.2 V to 57.6 V; PoE: 802.3bt/at/af
Dimensions with Packaging (H × W × D) [mm]: 170 × 555 × 370 (6.69 × 21.85 × 14.57 in.)
Weight without Packaging [kg]: 2.76 (6.08 lb)
Weight with Packaging [kg]: 5.65 (12.46 lb)
Operating Temperature [°C (°F)]: –40°C to +70°C (–40°F to +158°F)
Operating Relative Humidity [RH]: 0% to 100% (operating); 5% to 95% (storage, non-condensing)
Radio Interface: Built-in directional antenna
Antenna Gain: 2.4 GHz: 10 dBi/stream (peak), 10 dBi (combined); 5 GHz: 11 dBi/stream (peak), 10 dBi (combined)
Operating Frequency Bands: 2.4 GHz, 5 GHz
Ingress Protection: IP68
Beamwidth of Built-in Antenna: 2.4 GHz: Horizontal 70°, Vertical 35°; 5 GHz: Horizontal 60°, Vertical 20°
