Wifi 7 Huawei AP772 (1024 user)

Price: Contact

Model : AP772 (1024 user)
P/N : AP772 (1024 user)
Origin : Huawei/China

Add to cart Buy now

Request a quote

Call for a price

Technical support: 0939.147.993

Purchase benefits

✔️100% genuine product

✔️Best price

✔️Dedicated professional advice

✔️Free delivery within Hanoi, Ho Chi Minh, Bac Ninh

✔️Warranty & dedicated repair

VUNG PHAT COMMERCE & TECHNICAL COMPANY LIMITED

Address: C9-18 Geleximco Le Trong Tan Urban Area, Duong Noi Ward, Hanoi City, Viet Nam
Hotline: 0939 147 993 - 0911 664 995
Email: info@vptek.vn
Website: www.vptek.vn

Details
Manual document

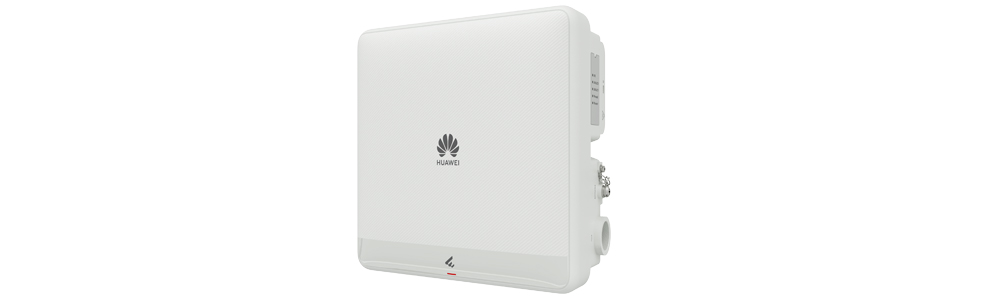

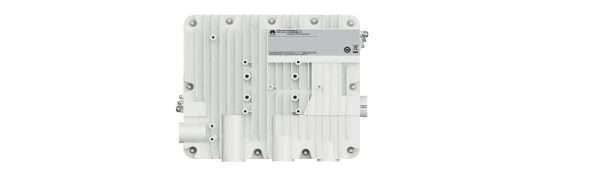

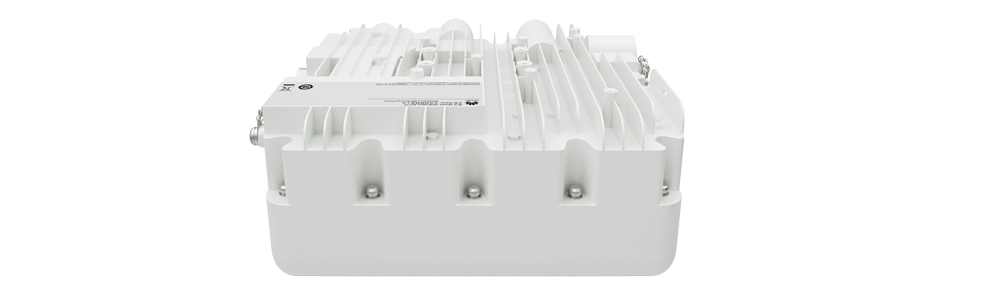

Huawei AP772 is a high-performance outdoor Wi-Fi 7 access point designed to deliver ultra-fast wireless connectivity in demanding environments. Supporting the latest Wi-Fi 7 (802.11be) standard with dual-band 2.4 GHz and 5 GHz, the AP772 provides multi-gigabit data rates, ensuring smooth, stable, and secure connections even for a large number of devices.

The device supports up to 1024 concurrent users (recommended 300), making it ideal for public areas, stadiums, campus networks, industrial parks, and open urban spaces. With an outdoor-ready design featuring IP68-rated dustproof and waterproof protection, the AP772 is built to operate reliably under harsh weather conditions.

Equipped with a high-speed 10GE uplink port, flexible PoE power supply, and integrated omnidirectional antennas, the AP772 offers easy deployment, cost efficiency, and robust coverage expansion. Leveraging multi-stream MIMO technology and wide channel bandwidth, it optimizes data transmission efficiency, minimizes interference, and delivers a fast, reliable, and intelligent wireless experience.

This makes the AP772 an ideal solution for building high-speed, stable, and durable outdoor Wi-Fi 7 networks in high-density environments.

Specifications Wifi 7 Huawei AP772 (1024 user)

Wi-Fi Standard: 2.4 GHz: 802.11b/g/n/ax/be, 5 GHz: 802.11a/n/ac/ax/be
Installation Type: Wall, Pole
Optimal Signal Distance (m): 160
Maximum Number of Access Users: 1024
Recommended Number of Access Users: 130
Device Rate: 6.45 Gbps
Maximum Number of Physical Ports on the Device: 2.5GE (RJ45) x 1, auto-sensing 100M/1000M/2500M; 10GE optical (SFP+), auto-sensing GE/2.5GE/10GE
Number of Radios: 2
Maximum Channel Bandwidth [MHz]: Radio 0 (2.4 GHz): 40 MHz; Radio 1 (5 GHz): 160 MHz
Maximum Transmit Power: 2.4 GHz: 25 dBm/chain, 28 dBm (combined power); 5 GHz: 24 dBm/chain, 30 dBm (combined power)
MIMO Spatial Streams: Radio 0 (2.4 GHz): 2×2; Radio 1 (5 GHz): 4×4
Maximum Power Consumption [W]: 20.4 W (excluding USB)
Input Voltage Range [V]: DC: 43.2 V to 57.6 V; PoE: 802.3bt/at/af
Package Dimensions (H x W x D) [mm (in.)]: 185 mm × 555 mm × 370 mm (7.28 in. × 21.85 in. × 14.57 in.)
Weight Without Package [kg (lb)]: 2.89 kg (6.37 lb)
Weight With Package [kg (lb)]: 5.42 kg (11.95 lb)
Operating Temperature [°C (°F)]: –40°C to +70°C (–40°F to +158°F) (From 1800 m to 5000 m [5905.51 ft to 16404.20 ft], the maximum device temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft] altitude increase.)
Operating Relative Humidity [RH]: Operating humidity: 0% RH to 100% RH; Storage humidity: 5% RH to 95% RH (non-condensing)
Radio Interface: Built-in omnidirectional antenna
Antenna Gain: 2.4 GHz: 5 dBi/chain (peak), 3 dBi (combined gain); 5 GHz: 5 dBi/chain (peak), 3 dBi (combined gain)
Operating Frequency Band: 2.4 GHz, 5 GHz
Ingress Protection (Dust/Water Resistance): IP68
